This press release features multimedia. View the full release here: https://www.businesswire.com/news/home/20191017005265/en/
Tablets, laptop PCs and game consoles minimize transfer times for video data or large files by using 10Gbps or 48Gbps high speed communication standards. With the increasing miniaturization of the controller ICs used in these high speed communications, ESD tolerances are decreasing, and it is necessary to enhance measures to counter ESD and surges from connectors; their lack can cause critical faults such as communication errors and file damage.
In addition, parts connected to high speed communication lines have a large effect on signals; passive parts on printed circuit boards, such as capacitors and resistors, can distort signal waveforms.
The new products reduces these influences with a lower capacitance suitable for high speed communications. In addition, by optimizing the process, the new products achieve a capacitance (typ.) of 0.15pF, about 25% lower than current products . This helps to realize stable circuits in high speed communications.
・ESD protection for high-speed signal lines (tablets, laptop PCs, game consoles and augmented reality and virtual reality equipment, etc.)
・Low total capacitance: Ct=0.15 pF (typ.)
・High electrostatic discharge voltage rating :
VESD= ±16kV (DF2B5M4ASL)
VESD= ±15kV (DF2B6M4ASL)

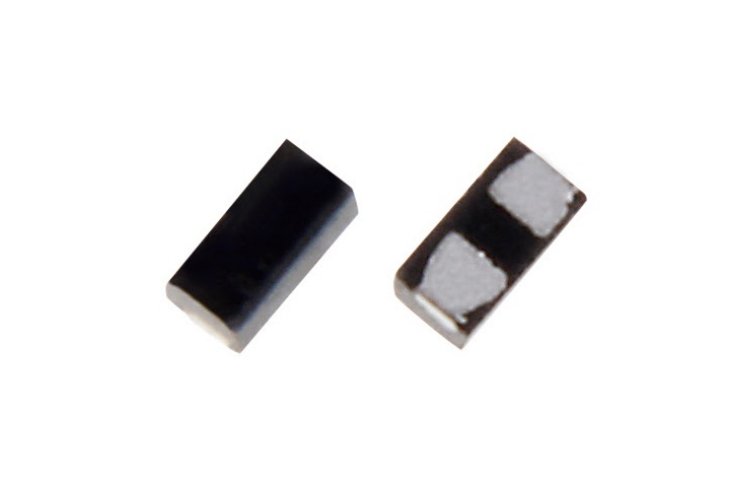

・Small and surface mounting package: SL2 (Package code : SOD-962, 0.62×0.32×0.3mm (typ.))
number Package Configuration Absolute
to IPP2=16 A
(V) Stock Check
(Package code) Size
(kV) typ. max
(SOD-962) 0.62×0.32×0.3 Bidirectional ±16 3.6 0.15 0.2 0.7 15 Buy Online
±15 5.5 0.15 0.2 0.7 15 Buy Online
 Products in the DF2BxM4SL series
 @IEC61000-4-2 (Contact)
 @TLP parameters: Z0=50Ω, tp=100ns, tr=300ps, averaging window t1=30ns to t2=60ns
 @ Based on IEC61000-4-5 8/20μs pulse
Follow the link below for more on Toshiba’s TVS Diodes (ESD Protection Diodes) line-up.
To check availability of the new products at online distributors, please visit:
*Company names, product names, and service names may be trademarks of their respective companies.
Small Signal Device Sales & Marketing Department
