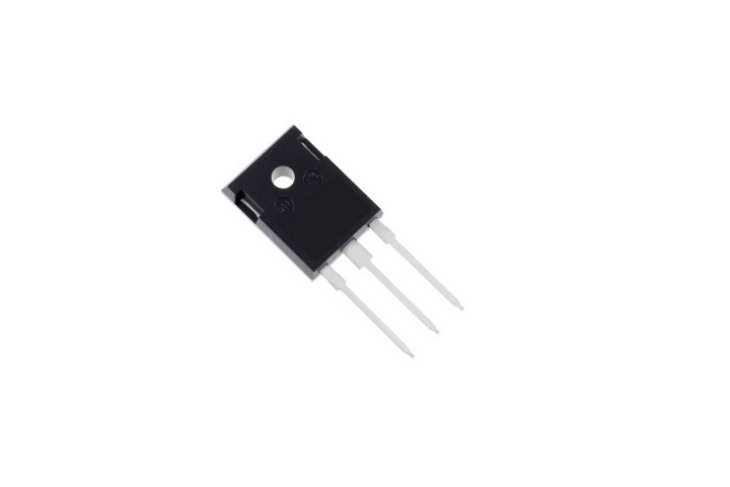

GT20N135SRA features a collector-emitter saturation voltage of 1.75V and a diode forward voltage of 1.8V, approximately 10% and 21% lower, respectively, than for the current product. Both the IGBT and diode have improved conduction loss characteristics at high temperature (TC=100℃), and the new IGBT can help reduce equipment power consumption. It also features a junction-to-case thermal resistance of 0.48℃/W (max), about 26% lower than that of the current product, allowing easier thermal design.
The new IGBT suppresses short circuit current that flows through the resonance capacitor when equipment is switched on. Its circuit current peak value is 129A, about a 31% reduction from the current product. As its safe operating area is widened, it makes equipment design easier compared to the current product.
Home appliances (such as tabletop IH cookers, IH rice cookers and microwave ovens) that use voltage resonance circuits
• Low conduction loss:
VCE(sat)=1.6V(typ.) (@IC=20A, VGE=15V, Ta=25℃)
VF=1.75V (typ.) (@IF=20A, VGE=0V, Ta=25℃)
• Low junction-to-case thermal resistance: Rth(j-C)=0.48℃/W (max)
• Suppresses short circuit current that flows through the resonance capacitor when equipment is switched on.
• Wide safe operating area
(Unless otherwise specified, @Ta=25 °C)
Number Package Absolute maximum ratings Collector-emitter saturation voltage
(V) Diode forward voltage
(V) Switching time
(μs) Junction-to-case thermal resistance
(V) Collector current
(A) Collector current
(A) Junction temperature
TO-247 1350 40 20 175 1.60 1.75 0.25 0.48
 As of June 2019, values measured by Toshiba. (Test condition: IC=20A, VGE=15V, TC=100℃)
 As of June 2019, values measured by Toshiba. (Test condition: IF=20A, VGE=0V, TC=100℃)
 Toshiba’s current product “GT40RR21”
 As of June 2019, values measured by Toshiba. (Test condition: VCC=300V, VGG=15V, C=0.33μF, t=5μs, Ta=25℃)
Follow the link below for more on the new product.
Follow the link below for more on Toshiba IGBT line-up.
