The new IC can drive a 128 micro-stepping motor with a power supply ranging from 2.5V to 16V. Its wide range of applications includes USB-powered, battery-powered, and standard 9-12V system devices, and it can also be used with a 1.8V interface, allowing connection to various hosts and microcontrollers.

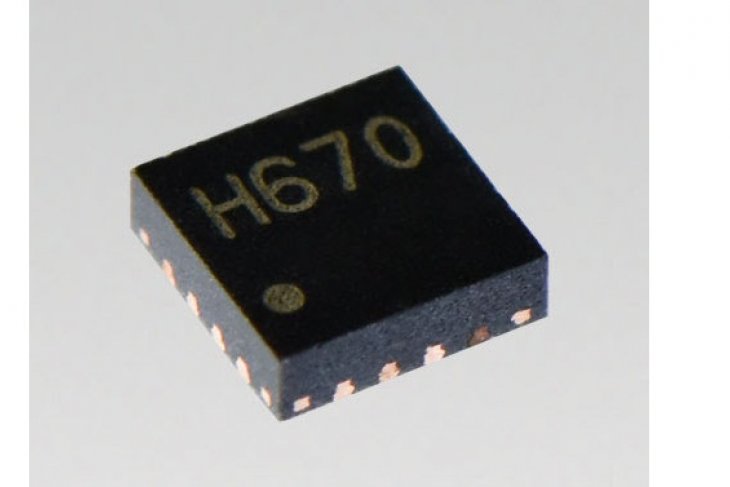

Toshiba’s newest DMOS process ensures that TC78H670FTG realizes excellent figure-of-merit low ON resistance. The process also contributes to the IC’s ultra-low standby current. The IC is housed in a compact QFN16 package and eliminates use of a current sense resistor by incorporating a current detection part that contributes to lower cost, a smaller component footprint, and PCB routing space savings.
• Compact package (QFN16 3.0mm×3.0mm)
• Low ON resistance (Ron=0.48Ω @VM=12V)
• Low to medium voltage range 2.5V to 16V with interface of 1.8V to 5.0V
• Ultra-low standby current of 0.1mA
• Operates motors smoothly and quietly and reduces vibration; improved rotation angle accuracy achieved by micro-stepping control.
Cameras, security cameras, portable printers, handheld scanners, pico-projectors, and smartphones
Part number TC78H670FTG
Supply voltage (operating range) 2.5V to 16V
(Absolute maximum rating) 18V/2.0A
Output on-resistance (upper + lower) 0.48Ω (typ.)@VM=12V, Ta=25℃
Safety function Over current detection, thermal shut down, under voltage lockout, and open detection
Features Current consumption in standby mode: 0.1μA or less
Supports 1.8V I/F
Eliminates current sense resistor
Supports up to 1/128 micro-stepping control
 Actual motor drive current depends on the use environment and such factors as ambient temperature and power supply voltage.
 As of February 2020.
 Compared to the existing products manufactured by Toshiba.
For more information about the new product, please visit:
*Company names, product names, and service names may be trademarks of their respective companies.
System Devices Marketing Dept.II
Information in this document, including product prices and specifications, content of services and contact information, is current on the date of the announcement but is subject to change without prior notice.
About Toshiba Electronic Devices & Storage Corporation
Toshiba Electronic Devices & Storage Corporation combines the vigor of a new company with the wisdom of experience. Since becoming an independent company in July 2017, we have taken our place among the leading general devices companies, and offer our customers and business partners outstanding solutions in discrete semiconductors, system LSIs and HDD.
Our 22,000 employees around the world share a determination to maximize the value of our products, and emphasize close collaboration with customers to promote co-creation of value and new markets. We look forward to building on annual sales now surpassing 800-billion yen (US$7 billion) and to contributing to a better future for people everywhere.
